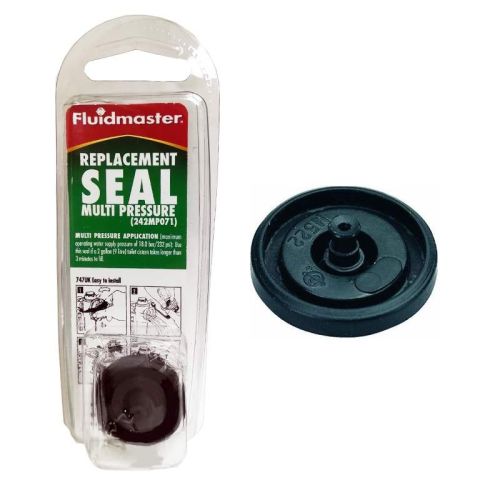

Fluidmaster Multi Pressure Replacement Seal Diaphragm Washer

UNBRANDED

Be the first to review this product

€4.99

Over 20 in stock

SKU

TP_DW3

Multi pressure application
Replacement seal
Diaphragm washer
Max pressure: 18.0 bar/ 232 psi
Easy to install

Show more Show less

showTotal: 1
showQtyAlways: 1
showProgress: 1
showProgressAlways: 1
available: 1
is_salable: Yes
salable_qty: 20
qty (legacy): 0
is_in_stock (legacy): No
backorders: 0
Sources:

Capel: qty=12, status=1
Rathnew: qty=8, status=1

string(6) "simple" string(11) "$stockId: 2" string(176) "Array ( [0] => Array ( [stock_id] => 2 [stock_name] => Lenehans Stores [qty] => 20 [manage_stock] => 1 ) ) " int(20) int(20) string(137) "Array ( [209404] => Array ( [qty] => 20 [qty_base] => 20 [total_sold] => 57 ) ) "

20 available 57 Sold

Qty

Find me in our Capel Street store

Estimated Delivery

Inlet Float Valve Diaphragm Washer - 1 1/4" Next

Diaphragm Washer Previous EasiPlumb Diaphragm Washer for Float Operated Filling Valves

Details

Fluidmaster Multi Pressure Replacement Seal Diaphragm Washer

Multi pressure application
Replacement seal
Diaphragm washer
Maximum operating water supply pressure of 18.0 bar/ 232 psi
Use this seal if a 2 gallon (9 litre) toilet cistern takes longer than 3 minutes to fill

Easy to install

Turn off water, flush toilet, lift float arm, push down on 400 and 747 upper cap assembly, turn anti-clockwise, remove cap assembly and seal
Remove seal: do not bend stainless steel stem. Replace seal flat side up
Hold cup over opening, turn water on and off to clear debris
Engage lugs, be sure cap assembly is fully turned to stop (resnap 747 float rod). Turn on water
